FS47

Slim Fold Slide Thermal System

We offer a comprehensive range of Minimal / Slim Folding doors suitable for residential and commercial projects. The range starts from Minimal Bi-fold Cold systems accommodating 8mm of single glass and spans all the way to Minimal Bi-fold thermal systems accommodating triple glass 50mm. In most of the systems the doors are rolling simultaneously on the top and bottom. However, the primary rolling side is in the bottom. Alternatively, there also the option to roll only on the top. Motion Facades minimal bi-fold are the slimmest in the world with a sash profile as low as 27mm (68mm Combined mullion). Slim fold slide sashes can span up to 5 meters in height and 1.5 meters in width. Slim bi-folding doors are available with tracks as low as 43mm in step and fully submerged configurations. Infinity floor and infinity ceiling options are also available
Technical characteristics
Bottom track height60 / 76 mm
Floor step0 /12 /28 / 48 / 60 / 64 / 76 mm
Frame Height, Horizontal Top83 / 100 mm
Frame Height, Vertical57 mm
Frame Width60 mm
Floor TypologyStep, Submerged
Riding TypologyBottom Rolling
Sliding / Alignment rollersStainless Steel
Sash Height, Vertical39 mm
Sash Height, Horizontal39 mm
Sash Width60 mm
Centre Mullion Height92 mm
Max. Weight per Sash130 Kg
Max. Sash Width1300
Max. Sash Height3500
Opening typeFold Slide
Glazing Width Possibilities32/45mm
Maximum Locking Points5
Sealing Type4 Gaskets
Performances
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw)≥1.0 W/(m2K)
7015
1013
1015
5010
5023
5024
6003
6005
6009
6021
7005
7006
9010
7016
7022
7024
7030
7035
7037
7038
7040
8014
9005
9006
9007
1019
5010
6009
7012
7016
7030
7039
7042
8017
9016
Golden Oak
Light Oak
Nussbaum
Pear Tree
Pine
Red Cherry
Walnut
Wenge
FLOOR
TYPOLOGIES
MIDDLE
TYPOLOGIES
CONSTRUCTION
TYPOLOGIES

Step With Overlap

Step

Submerged, Pipe

Submerged, Pipe, Fin

Submerged, Inline Gutter, Fin

Submerged, External Gutter, Fin

Submerged, Interior

Submerged, Interior

Max. Sash Width (W) 1300 mm Max. Sash Height (H) 3500 mm

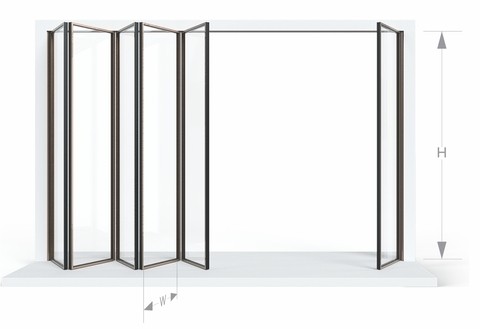

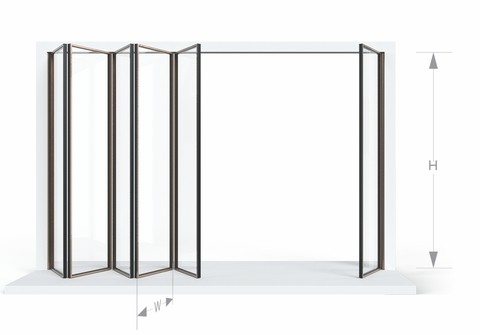

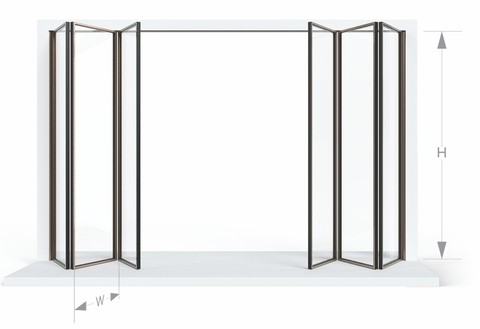

Outward opening

LEFT - 2, 3, 4, 5, 6, 7, 8 Sashes
RIGHT - 0 Sashes

LEFT - 2, 3, 4, 5, 6, 7 Sashes
RIGHT - 1 Sash

LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes

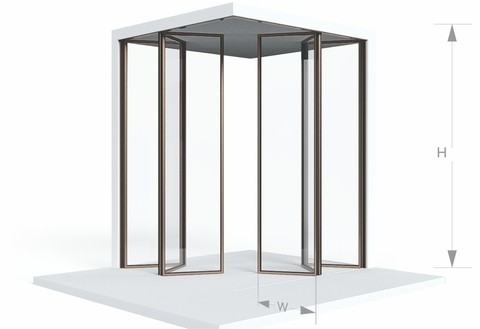

Corner Outward openning
LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes

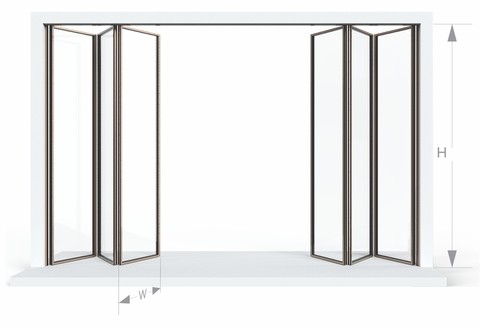

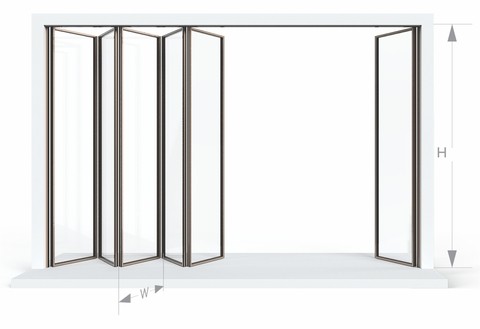

Inward opening

LEFT - 2, 3, 4, 5, 6, 7, 8 Sashes
RIGHT - 0 Sashes

LEFT - 2, 3, 4, 5, 6, 7 Sashes
RIGHT - 1 Sash

LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes

LEFT - 2, 3, 4, 5, 6 Sashes
RIGHT - 2, 3, 4, 5, 6 Sashes
