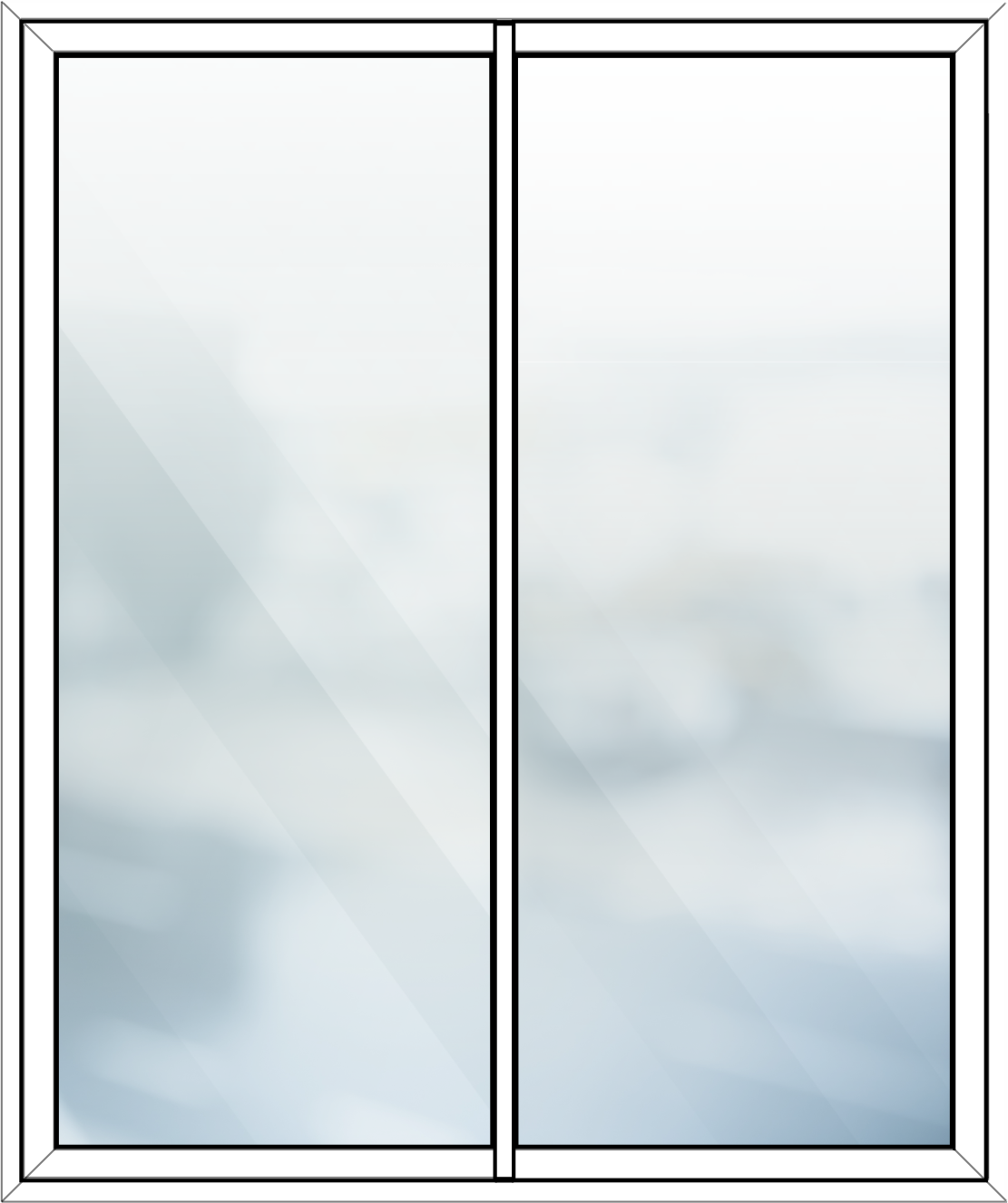

Discover the LS70—an immensely efficient aluminum system designed for precise and specific architectural solutions. Its lift & slide mechanism ensures effortless movement when opening, complemented by built-in seal gaskets and a specialized water drainage valve for impeccable waterproofing and insulation. Ideal for large openings, the LS70 accommodates windows up to 3 meters in height and a weight capacity of up to 400 kg.
| Maximum dimensions | |
|---|---|
| Min. sash height | 850 mm |
| Max. sash height | 3250 mm |
| Min. sash width | 700 mm |
| Max. sash width | 3300 mm |
| Visible parts of profiles | |
|---|---|
| Min. frame width | 155 mm |
| Min. frame height | 51 mm |
| Min. sash width | 67 mm |
| Min. height of frame with sash | 142 mm |
| Double glazing | |
|---|---|
| Height of the rabbet | 25 mm |
| Min. width of glazing | 26 mm |
| Max. width of glazing unit | 46 mm |
| Characteristics | |
|---|---|
| UW | 1.2 W/m2K |
| Max. sash weight | 400 kg |
7015
1013
1015
5010
5023
5024
6003
6005
6009
6021
7005
7006
9010
7016
7022
7024
7030
7035
7037
7038
7040
8014
9005
9006
9007
1019
5010
6009
7012
7016
7030
7039
7042
8017
9016
Golden Oak
Light Oak
Nussbaum
Pear Tree
Pine
Red Cherry
Walnut
Wenge
